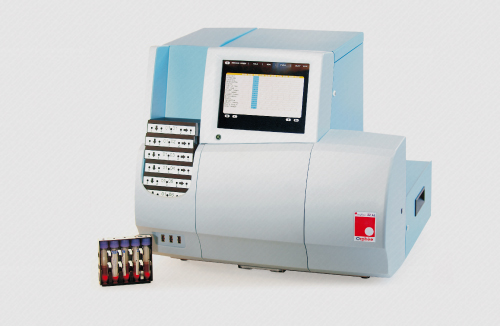

Orphee - Mythic 22AL
Orphee - Mythic 22 AL
5-Diff, Fully automated 22 parameters haemotology analyzer.
˙ Compact-sized ( The smallest 5-Diff in the world )
˙ 100 % full optical technology for 5-Diff instrument
˙ A New patented technology for 5-Diff: OCHF
˙ Sample volume < 18.2 uL
˙ Easy Use ( color touchscreen )
˙ Less mainteance
˙ 60 samples / hour
˙ Less reagnet consumption ( Only 3 reagents )
Orphee Mythic 22AL Specification
˙ Technical specification
| Sample volume | < 20 uL |
| Technology |
Imdepance ( WBC , RBC , PLT ) Spectrophotometry ( HGB ) Optical ( 5 - DIFF ) Optical Cytometry Hydrofocusing Free |
| Parameters |
22 parameters+ 2 Curves + 1 Scattergram WBC, LYM % and # , MON % and # , NEU % and # , BAS % and # , EOS % and # , RBC , HGB , HCT , MCV , MCH , MCHC , RDW , PLT , MPV , PCT , PDW , RBC Curve , 5 - Diff Scattergram , PLT Curve |
| Dimensions | 480 mm (W) * 400 mm (D) * 400 mm (H) |
| Weight | 25 Kgs |
| Power | 90 ~ 250 V ; 50 ~ 60 Hz ; 150 VA |
| Printers |
External printer Monochrome injet printer：PCL3 color laser printer：PCL6 |
| User's interface |
8.5 inchs TFT color touchscreen Built-in numerical keyboard |
| Output |
Bidirectional LIS communication RS232 Ethernet ( UDP / IP, TCP / IP ) 5 USB port |
| Tubes ID | Internal Barcode scanner |
| Loading |
Continuous loading 10 Racks; 5 tubes / Rack STAT position Automatic rerun option |
˙ Software specification
| Multilanguage | French, English, Spanish, Portuguese, Italian, German, Cyrillic, Chinese.... |
| Calibration | Automatic or maunal |
| Quality control |
12 batches 100 runs / batch Table and L - J Graphs |
| Archives |
Internal memory：1,500 patients Mass storage ( USB )：60,000 patients |
| Traceability | Patient Identification：Name, Patient ID , Sample ID
Dialy log Reagent monitoring：lot number, Expiry date, volume Service log |
| Flagging | Pathologic flags
Lab limits Reagent alerts Instrument alerts |
˙ Reagents
| HM22 - 001 - 01 | Cleaner for Mythic 22 |
| HM22 - 002 - 01 | OnlyOne |
| HM22 - 003 - 10 |
Diluent for Mythic 22 |
˙ Calibrator and Controls
| Myt - Cal | Calibrator for Mythic 22 |
|
Myt - 5D trilevel or normal level |
Quality controls for Mythic 22 |
